6/10KV 8.7/10KV Tinned Copper Core Metal Shield Anti-electromagnetic interference Mobile Power Flexible Cable for mobile equipment Power transmission in coal mines
High Voltage 6/10KV Tinned Copper Conductor Metal Shield Mining Power Cable

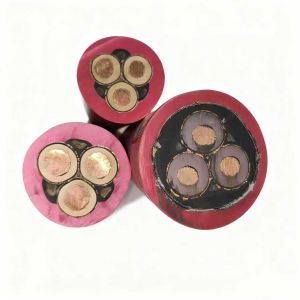

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. It is designed for underground coal mines, primarily used for power transmission in mobile equipment underground.Capable of long-term stable operation in the humid, dusty, and corrosive gas environments of coal mine shafts, with a typical operating temperature range of -30°C to 65°C.
Product Features
- Rated power frequency voltage U0/U: 6/10Kv,8.7/10KV
- Conductor: high-quality oxygen-free copper with high electrical conductivity, significantly reducing electrical energy loss
- Insulation: compounds based on high-quality ethylene propylene rubber can withstand higher voltages, enhancing protective performance in harsh environments
- Shield: Internal metal shielding layer effectively isolates external interference, enhancing signal stability
- Outer Sheath: Constructed from rubber material, offering excellent wear resistance and corrosion resistance
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Maximum conductor temperature: 65°C
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, Anti-electromagnetic interference, wear-resistant, oil-resistant, and corrosion-resistant
- Metal shielding layer protects against electromagnetic interference and provides grounding protection
Technical Specifications
| No | Item | Data |
| 1 | Productor Name | High Voltage Flexible Rubber Mining Cable |
| 2 | Insulation | EPR/EPDM |
| 3 | Sheath | Rubber |
| 4 | Voltage | 6/10Kv,8.7/10KV |
| 5 | Conductor Operation Temperature | -35℃~+65℃ |
| 6 | Shield | Metal shield |
| 7 | Conductor | Tinned Copper |
| 8 | Filler | Rubber |
| 9 | Feature | Anti-electromagnetic interference,oil resistant, tensile resistant, waterproof, wear resistant |
| 10 | Application | Power transmission for mobile equipment in coal mines |
Applications
This cable is a high-voltage, metal-shielded, surveillance-type rubber-sheathed flexible cable designed for mining applications. Its core design principle is to adapt to the complex, high-risk underground operating environment, specifically targeting equipment requiring high-voltage power supply, mobile operation, and safety monitoring. Examples include: - Coal cutters - Scraper conveyors / transfer conveyors - Mobile transformers - Roadheaders
Product Features
This cable utilizes tinned copper conductors. The tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission, avoids increased energy consumption or equipment failures caused by excessive contact resistance, and delivers more stable electrical performance.
